VMEbus Backplanes

Verotec offer a comprehensive range of VME backplanes from 1 to 21 slots wide in J1, J2 (3U) and J1/J2 monolithic (6U) variants. They offer excellent performance in the areas of crosstalk, ground shift, controlled impedance, power distribution and termination design. In addition to form factor and slot size, a choice of mechanical (switching connectors) or electronic (OR-gate) automatic daisy chaining is available.

Download Catalogue

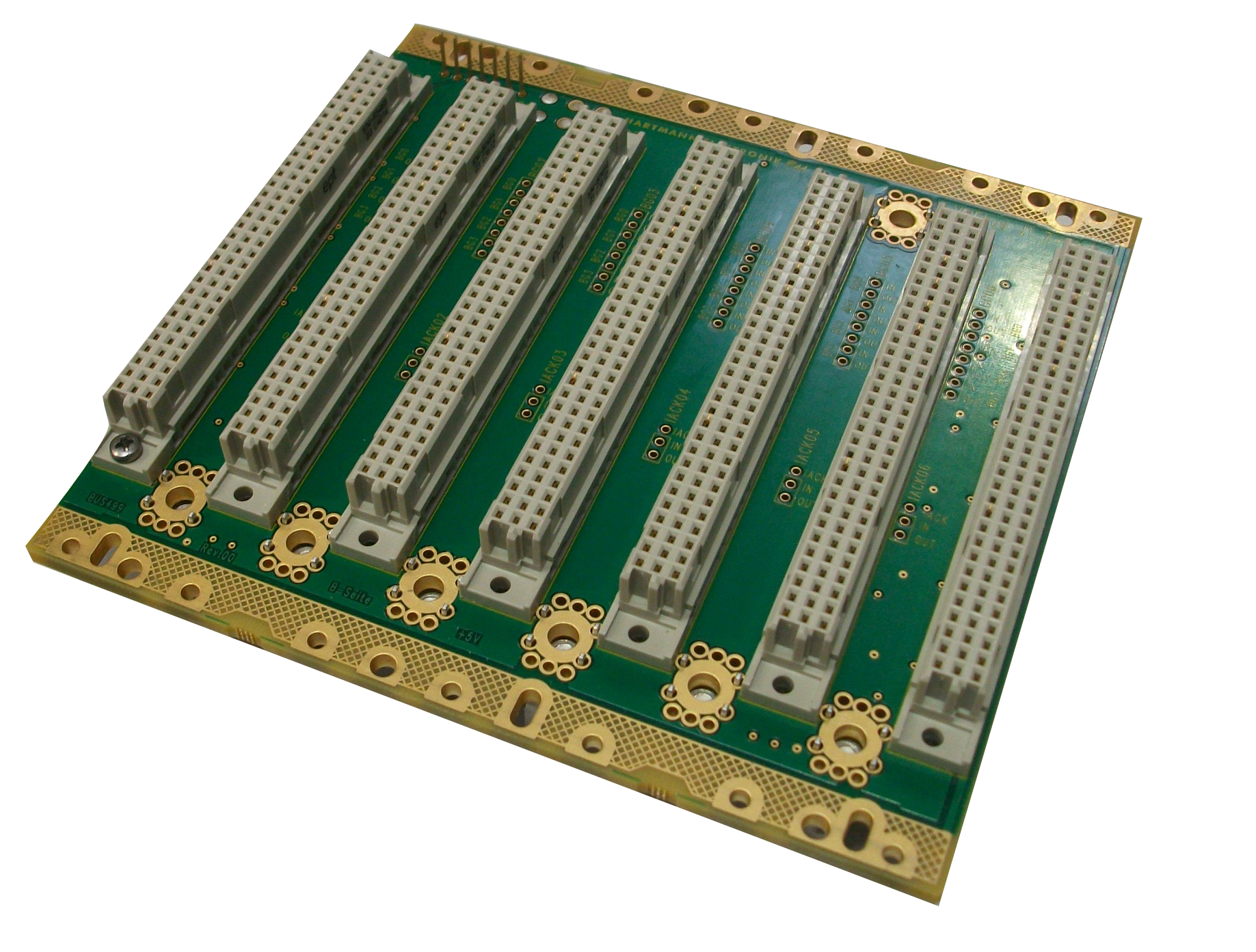

VMEbus Backplane

Order Code Prefix Form Factor Daisy Chain Slot Size
927-VME -J1 -M -1 to -21
-J2 -E
