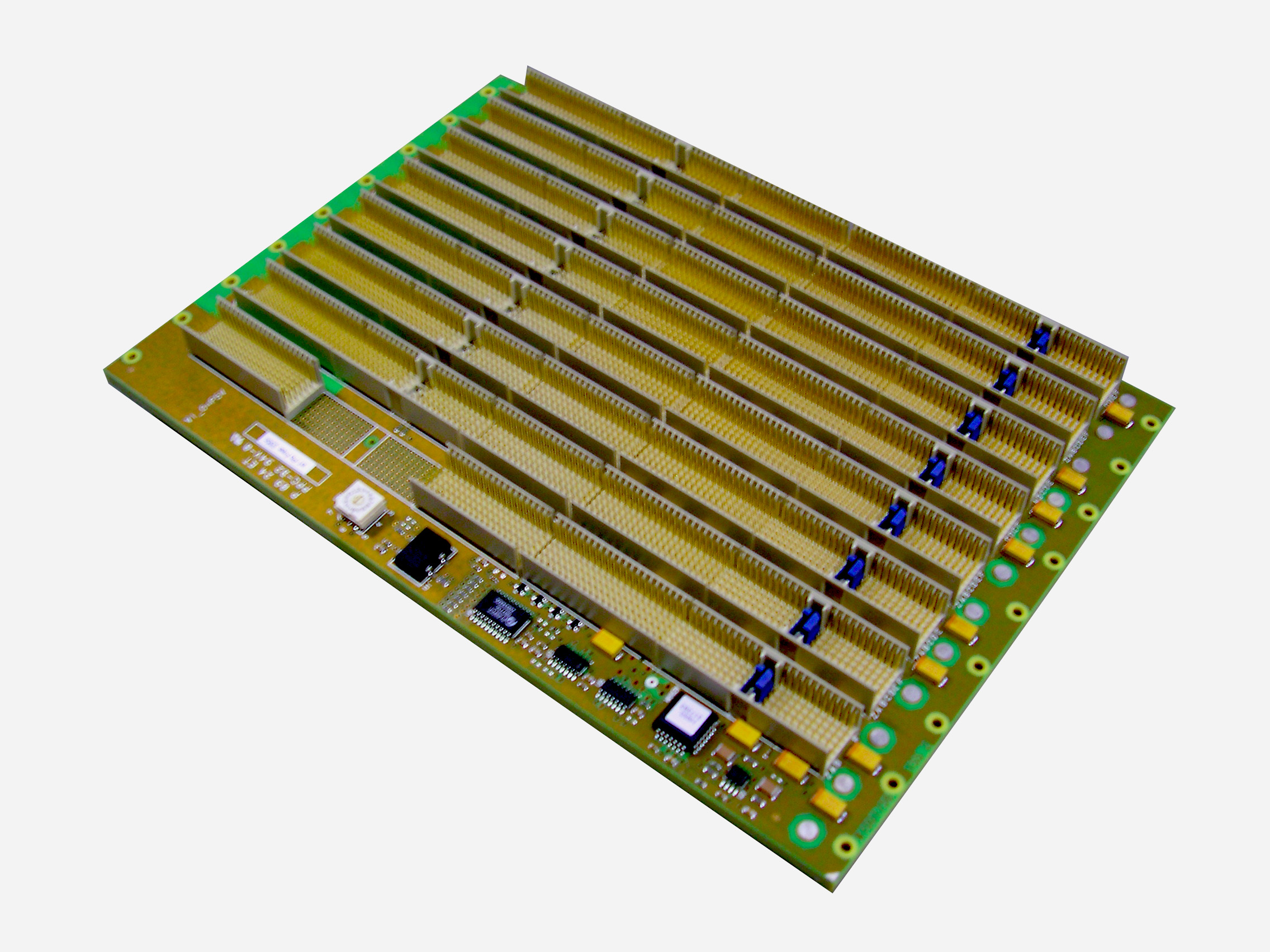

PXI Backplanes

PXI (CompactPCI eXtensions for Instrumentation) was developed to fulfil the requirements of users, primarily of instrumentation and automation systems, who needed increased performance, reliability and functionality from compact, PC based systems. In order to allow users to benefit from existing software and component availability, PXI maintains compatibility with industry standard PCs.

Download Catalogue


Bus Structure
PXI 64 Bit, system slot left

Rear mounted PXI 64Bit pallet bridges with user selectable trigger detection; factory setting is right to left.

Temperature range (storage) -40deg.C to +125deg.C
Temperature range (working) -20deg.C to +75deg.C
Flammability Rating UL94-V0
Humidity 95%
Regulatory Designed to meet UL, CSA, CE requirements

Ordering Information

Description Order Code
3U, 8 slot PXI Backplane 927-4001724
6U, 8 slot PXI Backplane 927-4001725
3U, 14 slot PXI Backplane 927-4001726
