Standard Rackcase

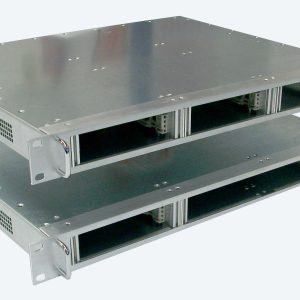

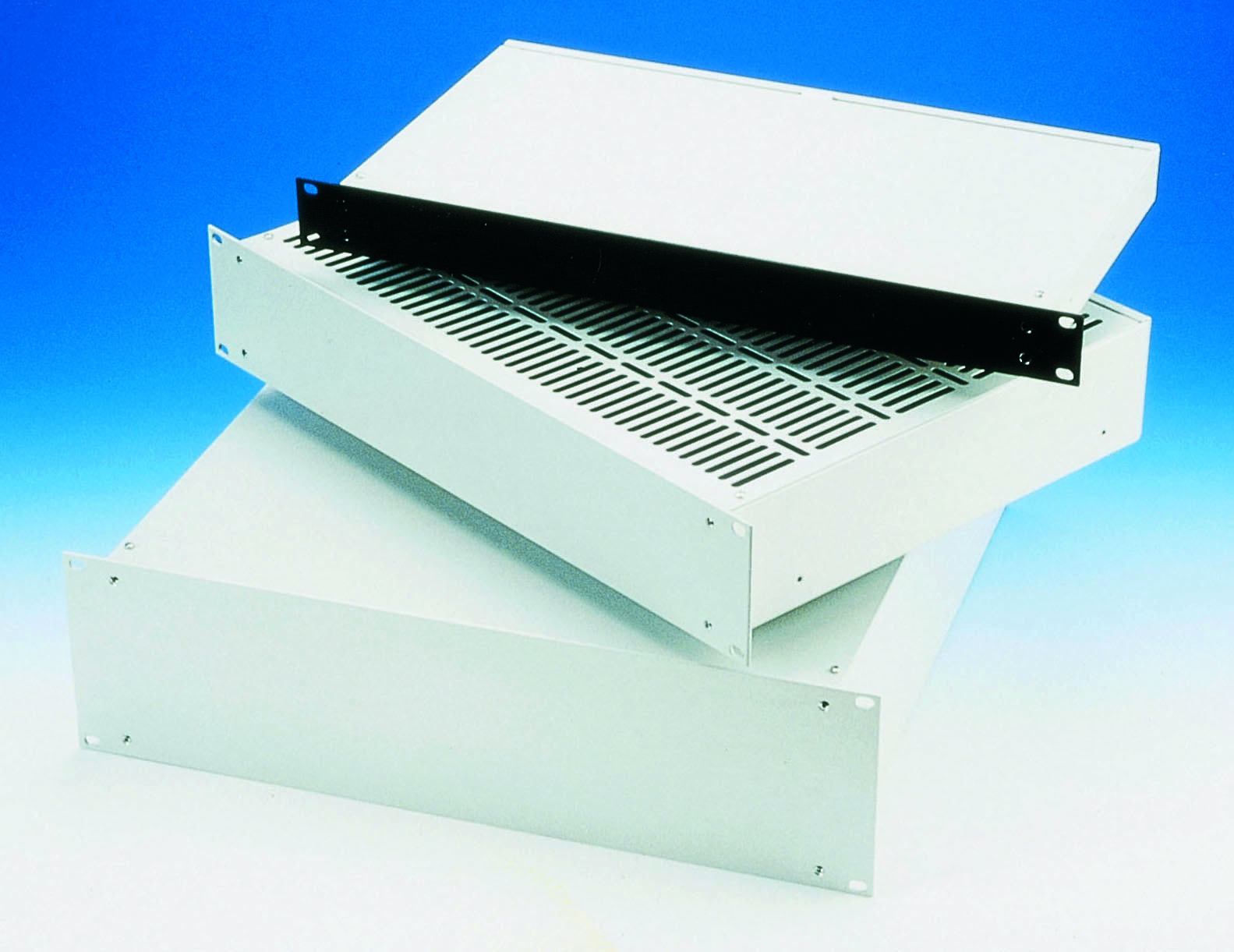

19” rack cases are designed to offer a simple solution to many 19” mounting applications. The design allows numerous combinations to be assembled according to the application and hence offers total flexibility for the design engineer, using common piece parts. It also allows the case to be presented in a number of attractive finishes for individual product tailoring of 19” mounting applications.
Standard 1U-4U Rackcase components may be ordered separately; alternatively 1U-6U Rackcases can be configured in which case they are supplied fully assembled. Accessories include chassis trays to aid the mounting of internal components.
Configured Cases (1U - 3U)
So that specific permutations can be provided, the below charts should be used to configure exact requirements. Each digit of the ordercode represents an available option for example, part number 519-110113 represents a 1U rack case, 250mm deep with a plain top cover and base, clear anodised front panel and grey handles. Configured units are shipped assembled.
519-11 _ _ _ _
| Hight | Depth | 3rd Digit | Top & Base Covers | 4th Digit | Front Panel | 5th Digit | Rear Panel &Handles | 6th Digit |
|---|---|---|---|---|---|---|---|---|
| 1U | 250mm Nominal | 0 | Vented Top & Base | 0 | No Front Panel | 0 | No Handles or Rear Panel | 0 |
| 2U | 1 | Unvented Top & Base | 1 | Clear Anodised Front Panel | 1 | Rear Panel & Grey Handle | 1 | |
| 3U | 2 | Vented Top / Unvented Base | 2 | Black Painted Front Panel | 2 | Rear Panel & Black Handle | 2 | |
| 1U | 350mm Nominal | 3 | Unvented Top/Vented Base | 3 | Grey Handle Only No Rear Panel | 3 | ||
| 2U | 4 | Vented Base Only | 4 | Black Handle Only No Rear Panel | 4 | |||
| 3U | 5 | Unvented Base Only | 5 | Rear Panel Only No Handle | 5 | |||
| 1U | 450mm Nominal | 6 | ||||||
| 2U | 7 | |||||||
| 3U | 8 |
Configured Cases (4U - 6U)
So that specific permutations can be provided, the below charts should be used to configure exact requirements. Each digit of the ordercode represents an available option for example, part number 519-220113 represents a 4U rack case, 250mm deep with a plain top cover and base, clear anodised front panel and grey handles. Configured units are shipped assembled.
1U-6U Rackcases can be configured so are supplied fully assembled.
519-22 _ _ _ _
| Hight | Depth | 3rd Digit | Top & Base Covers | 4th Digit | Front Panel | 5th Digit | Rear Panel &Handles | 6th Digit |
|---|---|---|---|---|---|---|---|---|
| 4U | 250mm Nominal | 0 | Vented Top & Base | 0 | No Front Panel | 0 | No Handles or Rear Panel | 0 |
| 5U | 1 | Unvented Top & Base | 1 | Clear Anodised Front Panel | 1 | Rear Panel & Grey Handle | 1 | |
| 6U | 2 | Vented Top / Unvented Base | 2 | Black Painted Front Panel | 2 | Rear Panel & Black Handle | 2 | |
| 4U | 350mm Nominal | 3 | Unvented Top/Vented Base | 3 | Grey Handle Only No Rear Panel | 3 | ||
| 5U | 4 | Vented Base Only | 4 | Black Handle Only No Rear Panel | 4 | |||
| 6U | 5 | Unvented Base Only | 5 | Rear Panel Only No Handle | 5 | |||
| 4U | 450mm Nominal | 6 | ||||||
| 5U | 7 | |||||||
| 6U | 8 |

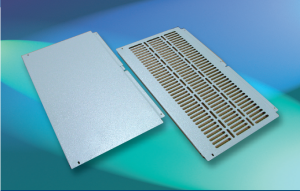

Components - Top Covers
These are available in 3 depths of 250mm, 350mm and 450mm in a ventilated and unventilated version and is simply attached to the case by means of two fasteners at the front.
| Top Covers | 250mm | 350mm | 450mm |
|---|---|---|---|
| Vented | 503-232963 | 503-232965 | 503-232967 |
| Unvented | 503-232964 | 503-232966 | 503-232968 |

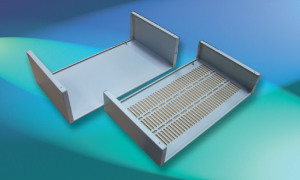

Components - Bases
These are available in 3 depths of 250mm, 350mm and 450mm and six heights of 1U-6U. It is available in ventilated and unventilated versions.
Note that 5U&6U bases are not available as separate component parts.
| Size | Base | 250mm | 350mm | 450mm |
|---|---|---|---|---|
| 1U | Vented | 503-232945 | 503-232951 | 503-232957 |
| Unvented | 503-232946 | 503-232952 | 503-232958 | |
| 2U | Vented | 503-232947 | 503-232953 | 503-232959 |
| Unvented | 503-232948 | 503-232954 | 503-232960 | |
| 3U | Vented | 503-232949 | 503-232955 | 503-232961 |
| Unvented | 503-232950 | 503-232956 | 503-232962 | |
| 4U | Vented | 503-4003032 | 503-4003034 | 503-4003036 |
| Unvented | 503-4003033 | 503-4003035 | 503-4003037 |
Components - Front & Rear Panels
Front Panels
These are available in clear anodised aluminium or black painted steel versions and are attached to the base by means of four screw fixings (eight on 4U-6U versions). There are six height variations of 1U-6U and all will accept front panel handles. Note that 5U&6U front panels are not available as a separate component parts.
| Front Panels | 1U | 2U | 3U | 4U |
|---|---|---|---|---|
| Black Painted | 503-232970 | 503-232973 | 503-232976 | 503-4003038 |
| Clear Anodised | 503-232971 | 503-232974 | 503-232977 | 503-4003039 |
Rear Panels
These are available in RAL 7035 painted zintec and are attached to the base by 4 screw fixings. There are six height variations of 1U-6U and all are removable by four screw. Note that 5U&6U rear panels are not available as a separate component part.
| Rear Panels | 1U | 2U | 3U | 4U |
|---|---|---|---|---|
| RAL 7035 Painted Steel | 503-232984 | 503-232985 | 503-232986 | 503-4003040 |
Accessories
Chassis Tray
To facilitate the mounting of electro/mechanical components in to the rackcase, a chassis tray may be used. Available in three depths, the tray is formed front and back to prevent bowing and is supported either side by a chassis runner that’s secured to the side of the case using screw fixings supplied. The chassis tray is conductive and non-perforated and sits 15mm above the base of the case to give adequate space for fixings.
| Description | Order Code |
|---|---|
| 19" x 250mm | 503-4002616 |
| 19" x 350mm | 503-4002617 |
| 19" x 450mm | 503-4002618 |
Handles
For 1U, 2U, 3U and 4U versions, either black or grey plastic / extruded aluminium handles may be selected. They are supplied with grey highlight strips and are secured to the case using four fixing screws through the front panel fixing centres. For 5U&6U versions, heavy duty, polished chrome steel bar handles are supplied – note these are not available as a separate component part.
| Handles | 1U | 2U | 3U | 4U |
|---|---|---|---|---|
| Black | 503-232978 | 503-232980 | 503-232982 | 503-4003041 |
| Grey | 503-232979 | 503-232981 | 503-232983 | 503-4003042 |
