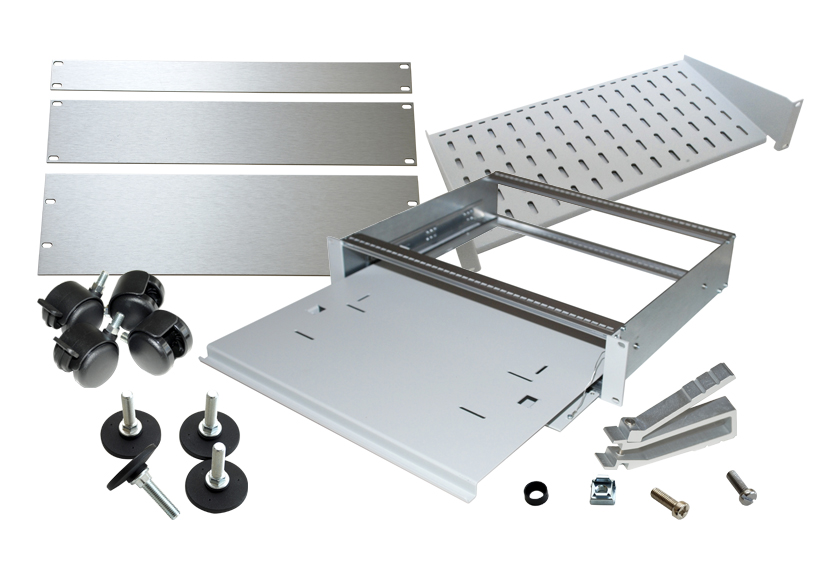

19″ Accessories

Category:

Aluminium Panels

We offer a comprehensive range of panels in aluminium to suit both 19” and “half width” practices. In addition, vented panels are available to provide an inlet of air for racks and enclosures.

19″ x 3mm Aluminium Plain Panels

Hight Width (mm) Height (mm) Anodised Painted
1U 483 44.45 50-0767 644-552985
2U 483 88.9 50-0768 644-552986
3U 483 133.35 50-0769 644-552987
4U 483 177.8 50-0770 644-552988
5U 483 222.25 50-0771 644-552989
6U 483 266.7 50-0772 644-552990
7U 483 311.15 50-225827
8U 483 355.6 50-225828
9U 483 400.05 50-24284
10U 483 444.5 50-24285
12U 483 533.4 50-25286

Half Width x 3mm Aluminium Plain Panels

Hight Width (mm) Height (mm) Anodised
2U 268 88.9 50-0763
3U 268 133.35 50-0764
4U 268 177.8 50-0765

19″ x 3mm Aluminium Vented Panels

Hight Width (mm) Height (mm) Anodised Painted
1U 483 44.5 50-24281 644-552981
2U 483 88.9 50-24282 644-552982
3U 483 133.35 50-24283 644-552983

Steel Panels

Steel filler panels are available in plain or vented versions and supplied in packs. They are manufactured using 1.5mm steel, painted black and include flanges to offer additional strength and rigidity.

19″ x 1.5mm Steel Flanged Plain Panels

Hight Pack Size Width Height Order Code
1U 5 483 44.45 645-599687
2U 5 483 88.9 645-599688
3U 5 483 133.35 645-599689
4U 5 483 177.8 645-599690
5U 5 483 222.25 645-599691
10U 2 483 444.5 645-599692

19″ x 1.5mm Steel Flanged Vented Panels

Hight Pack Size Width Height Order Code
1U 5 483 44.45 645-4001013
2U 5 483 88.9 645-599693
3U 5 483 133.35 645-4001014
4U 5 483 177.8 645-599694

Brushed Cable Entry Panels

Description Order Code
1U x 19" With Cable Support Bar 960-4000503
1U x 19" With Cable Support Tray 960-4000977

Keyboard Draw

Keyboard Draw
This high quality 19” keyboard housing occupies 2U of usable height and comes complete with a lockable drop down front panel. Keyboards are secured either by screw fixing positions or velcro strips. The drawer is mounted on soft close, self closing slides with “positive stop” both in and out. The usable aperture is 45mm x 426mm.

Description Order Code
2U Keyboard Draw 120-4000290
Velcro Mounting Kit 120-4000946

19" Shelves

19″ Shelves
These shelves fix directly onto the standard 19” panel mounts and occupy 2U of rack space. They are available in 250mm or 400mm deep versions and have a nominal load rating of 20KG.

Description Order Code
250mm Deep Shelf 802-562284
400mm Deep Shelf 802-562285

Feet & Castors

Castors
Supplied as a kit of 4, these light/medium duty castors have a static load rating of 65KG each and are available in braked and unbraked versions. Thread size is M10. (Note: Compatible with Imrak, Verak and Commsrak)

Adjustable Feet
For uneven surfaces, a set of 4 x adjustable feet can be used allowing a floor standing racks to be correctly aligned. Thread size is M10. (Note: Compatible with Imrak, Verak and Commsrak)

Description Order Code
Medium Castors (2 Braked/Unbraked) 802-560002
Medium Castors (Unbraked) 802-561557
Adjustable Feet 802-560001

Cage Nuts, Tools and Fixings

Panel Fixings – A number of fixings including caged nuts, screws and cup washers are available for fitting front panels and general 19” rack mounting hardware. These are available in various combinations and pack sizes as shown below.

Order Code Order Code Order Code
Description Pack 10 Pack 100 Pack 1000
M6 x 18 Slotted Head Screw, Bright Zinc 645-555393 645-555387 645-555394
M6 x 18 Cross Head Screw, Bright Zinc 645-555395 645-555396 645-555397
M6 Plastic Cup Washer 645-555390 645-555388 645-555389
M6 12/14 swg Caged Nut (1.83mm – 2.64mm) 50-3966 645-10023 50-202533
M6 18/20 swg Caged Nut (0.7mm – 1.6mm) 50-2847 645-555398 645-555399
M6 Self Earthing Caged Nut 645-558717 645-558718 645-558719
M6 x 18 Slotted Head Screw & Cup Washer Kit 50-3965 50-202534 50-202535
M6 x 18 Cross Head Screw & Cup Washer Kit 645-555391 645-594230 645-555392
Caged Nut Tool 50-2339
