VPX is a high-performance, ruggedized computing standard used primarily in defence applications for backplanes, boards, and systems. It supports high-speed switched fabrics like PCIe and Ethernet, serving as an evolution of the VMEbus standard for modern, data-intensive, and mission-critical embedded computing.

Together with our sales partner Kontron, we combine our innovative technologies to provide our customers with tailored, SOSA-aligned, VPX solutions to meet your application requirements.

To discuss further, please contact us our support team.

OpenVPX / SOSA Backplanes

  • Compliant to VITA 46.0 (VPX Baseline) specification
  • Compliant to VITA 65 (OpenVPX) specification
  • SOSA aligned versions and speeds of up to 100Gb
  • VITA 66 (optical) & VITA 67 (RF) compatible versions
  • 3U/6U formfactors in various slot counts & profiles
  • Power-only backplanes, ideal for development applications
OpenVPX / SOSA Backplane

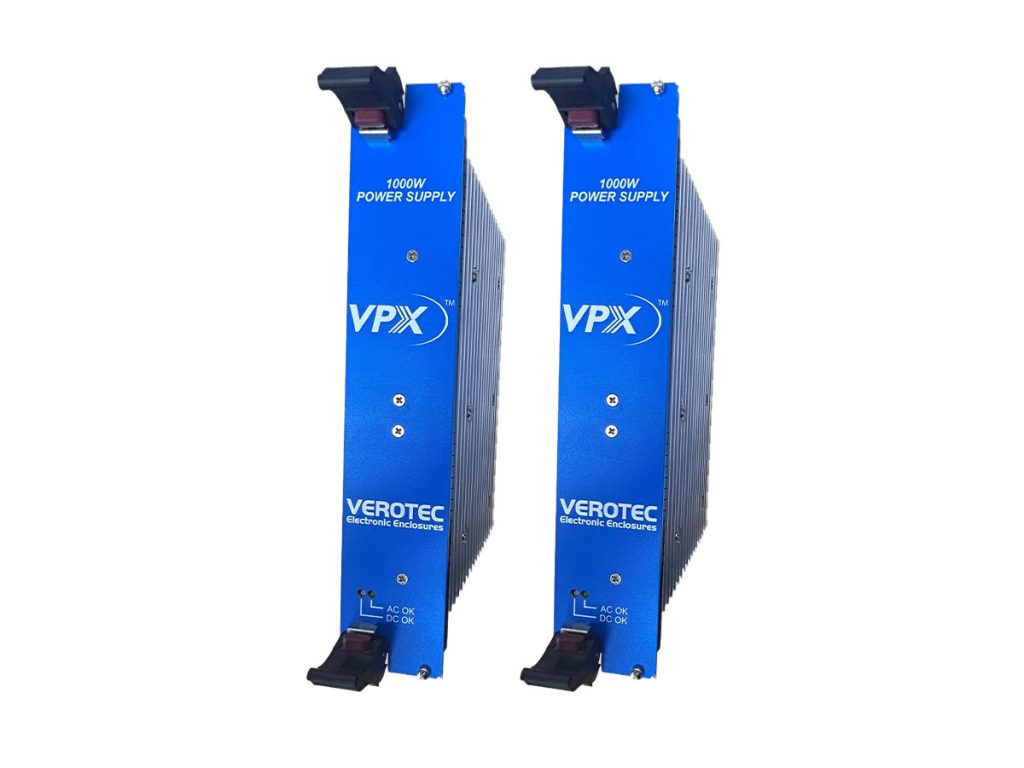

VPX Power Supplies

  • Compliant to VITA 62
  • 3U & 6U versions
  • 300W to 1000W Output power
  • AC-DC and DC-DC variants
  • Air cooled & conduction cooled versions
  • VPX power interface boards
VPX Power Supplies

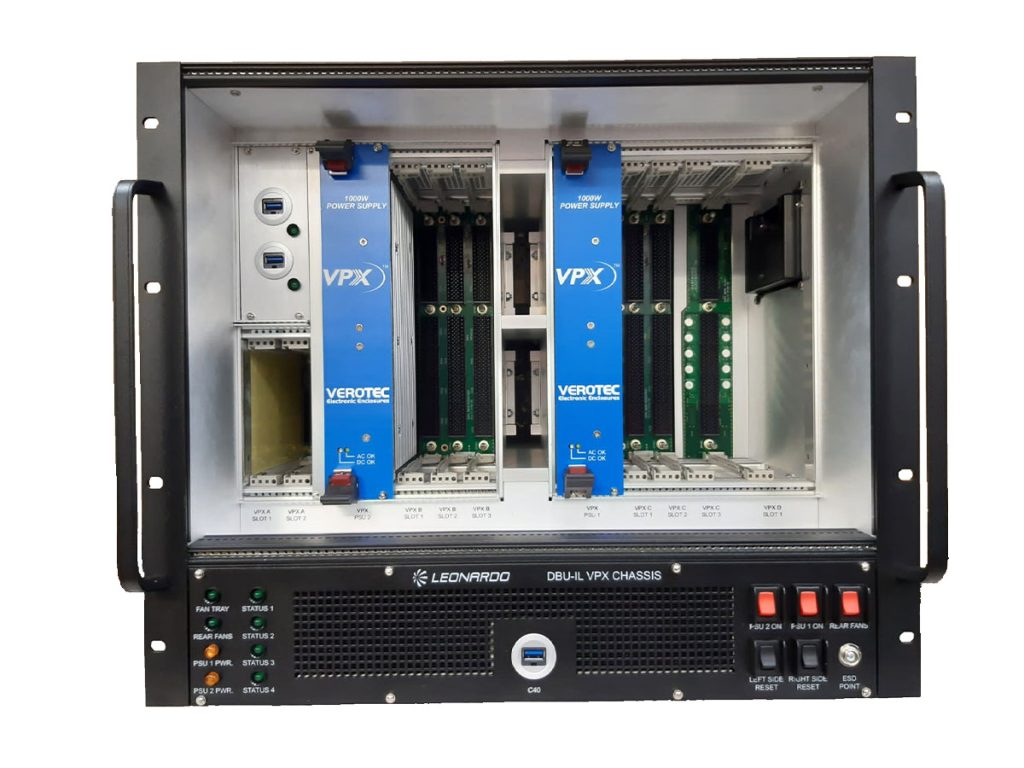

OpenVPX Systems & Chassis

  • OpenVPX systems configured for development & deployed applications
  • Desktop and 19” rack-mounting options
  • ARINC 404A/600 compliant ATR (air transport racks)
  • SOSA aligned, VITA 46.11 compliant chassis management
  • Wide choice of Open VPX / SOSA backplane, PSU & board options
  • VPX 48 (REDI) mechanical compliance with optimized cooling schemes
OpenVPX Systems & Chassis

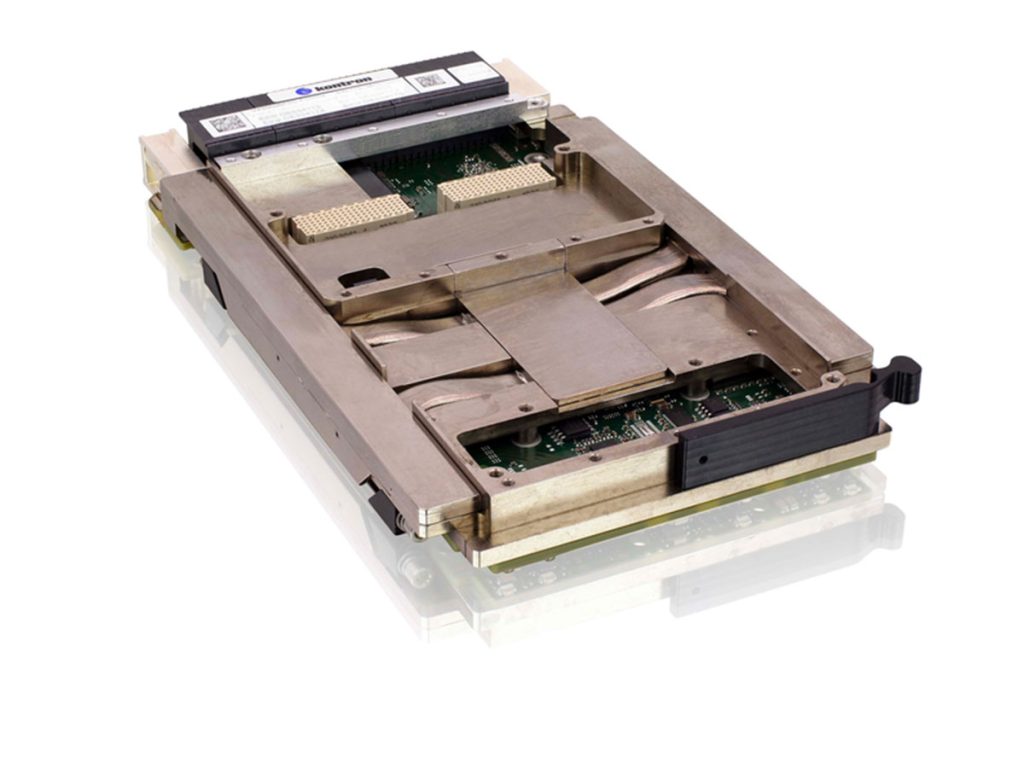

OpenVPX Single Board Computers

  • Designed for compute or I/O intensive, mission critical applications
  • OpenVPX (VITA 65) & SOSA alignment
  • 3U or 6U with Intel & ARM processor options
  • Air cooled and rugged (conduction cooled) variants
  • SWaP-C optimized (Size, Weight, Power, and Cost)
  • Long term program support
OpenVPX Single Board Computer

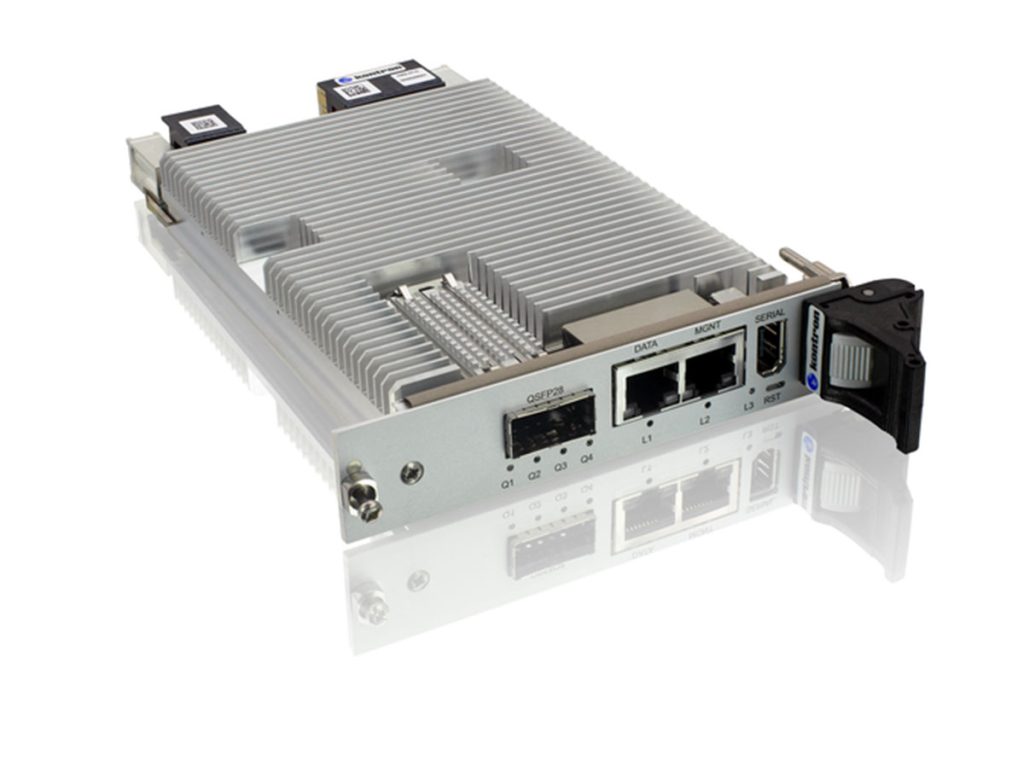

VPX Ethernet Switches

  • High end, robust L2/L3 switches for harsh environments
  • OpenVPX (VITA 65) & SOSA alignment
  • 3U & 6U options
  • Air cooled and rugged (conduction cooled) variants
  • Low power designs with extensive management capabilities
  • Up to 100Gbps ethernet speeds
VPX Ethernet Switch

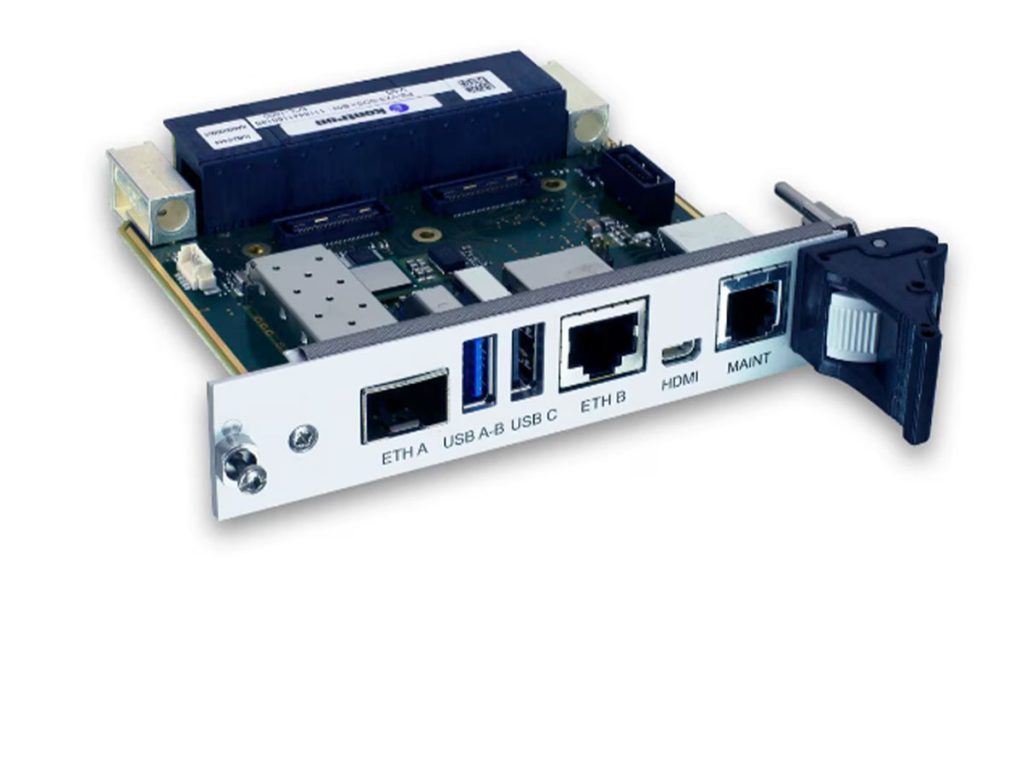

Open VPX I/O, Carrier and Rear Transition Boards

  • Compliant to VITA 65 (OpenVPX) specification
  • 3U VPX Xilinx® Virtex®-5 FPGA Processor Board
  • Rugged 3U VPX Ethernet Expansion Card
  • Rear transition modules to simplify I/O cabling
Open VPX I/O, Carrier and Rear Transition Boards
