Extruded Rack Handles

These one piece handles are extruded and formed from anodised aluminium.
Five sizes are available providing an ergonomic and comfortable grip for cardframes and enclosures. Supplied singly.

Size Overall Length Fixing Centres Order Code
2U 73 63.7 50-10114
3U 116.3 108.3 50-10117
4U 160.8 152.8 50-10116
5U 205.2 197.2 50-10115
6U 249.7 241.7 50-10118
Fixing Screws 173-10036

Carry Handles

This handle is ideally suited to carrying an enclosure from above. The unit consists of a PVC strap with a steel brace. Fixings are concealed under chromed covers and are fitted to the enclosure with nuts bolts and washers through a
pre-drilled hole.

Description Order Code
Carry Handle 50-0848

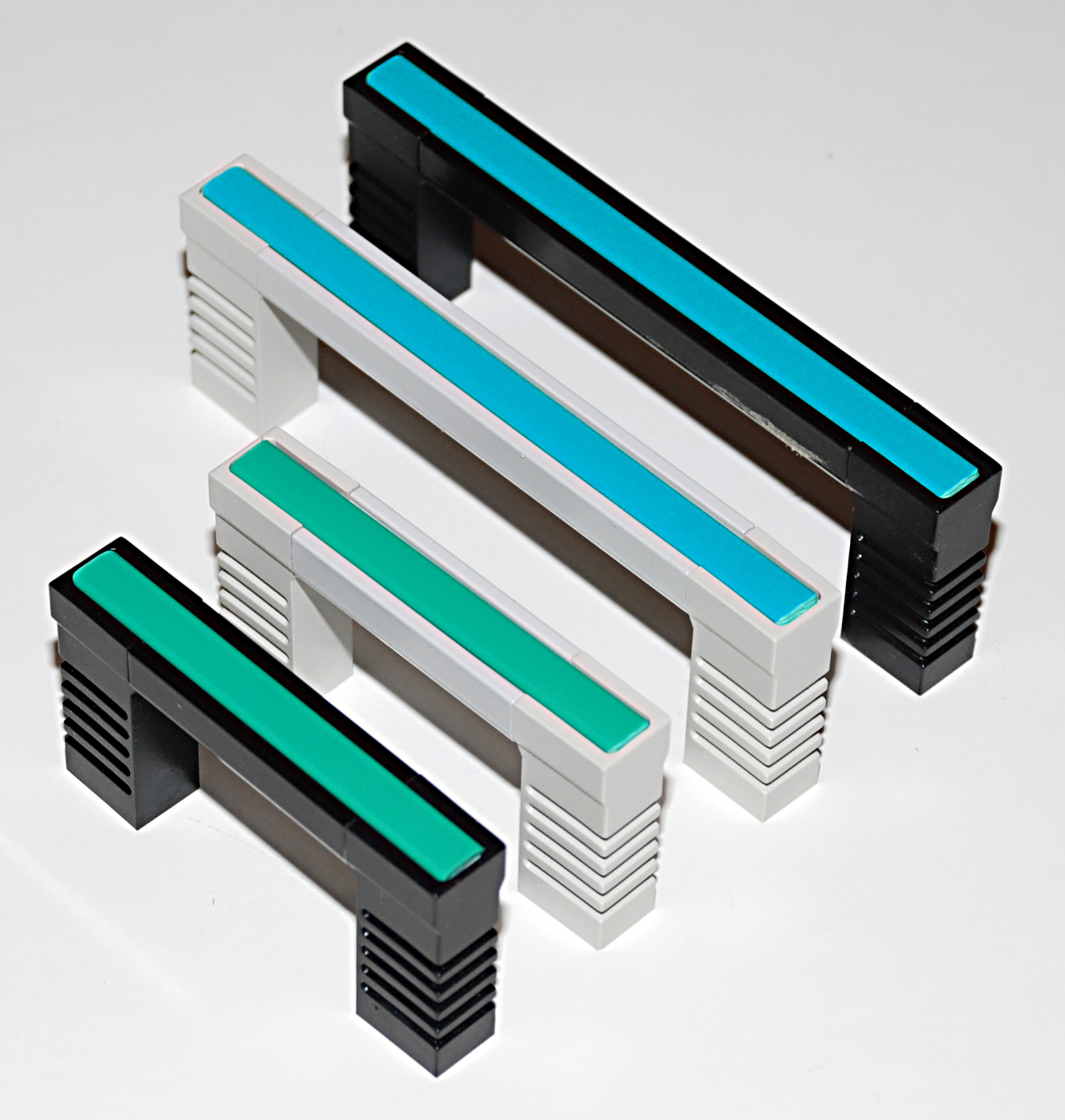

Rack Handles

Available in 3 heights and 2 colours these handles are designed to give a stylish appearance to any front panel mounted enclosures. The 1U version is a single piece moulding whilst the 2U & 3U versions have an aluminium centre extrusion with top and bottom moulding. The grey version is RAL 7035 colour and the black version is moulded in black material with a black painted aluminium extrusion. All versions are supplied as standard with a grey adhesive trim with different colours available upon request. Supplied in a pair.

Description Order Code
1U Black Rack Handle 503-232978
2U Black Rack Handle 503-232980
3U Black Rack Handle 503-232982
1U Grey Rack Handle 503-232979
2U Grey Rack Handle 503-232981
3U Grey Rack Handle 503-232983
